Wallwin Submersible Pump

Wet and Dry Well Submersible

The first Wallwin submersible pumps were sold under license with Robot as Wallwin Robot pumps. Typical model designations were: HW2030-6 and HW3000-4. These were superseded when Biwater acquired the product line and launched a complete range of wet and dry well pumps for both safe and hazardous area operation, typical model designations were; VPFN222-040-4, VP3-110-6.

Parts availability

Most parts are still supported from shelf stock with the exception of stator rotors (Brook Crompton). Since 2000, when owned by Gilkes (and up to present now provided by Hydromarque), the submersible range of pumps have been fitted with EMOD motors, which are completely interchangeable with previous models.

Dimensions

Sizes

80 – 300mm

Max Capacity

350 l/sec

Max Head

59m

Max Solids

100mm

Materials

Cast Iron, Nickel Iron (Pump Casings and Impellers only)

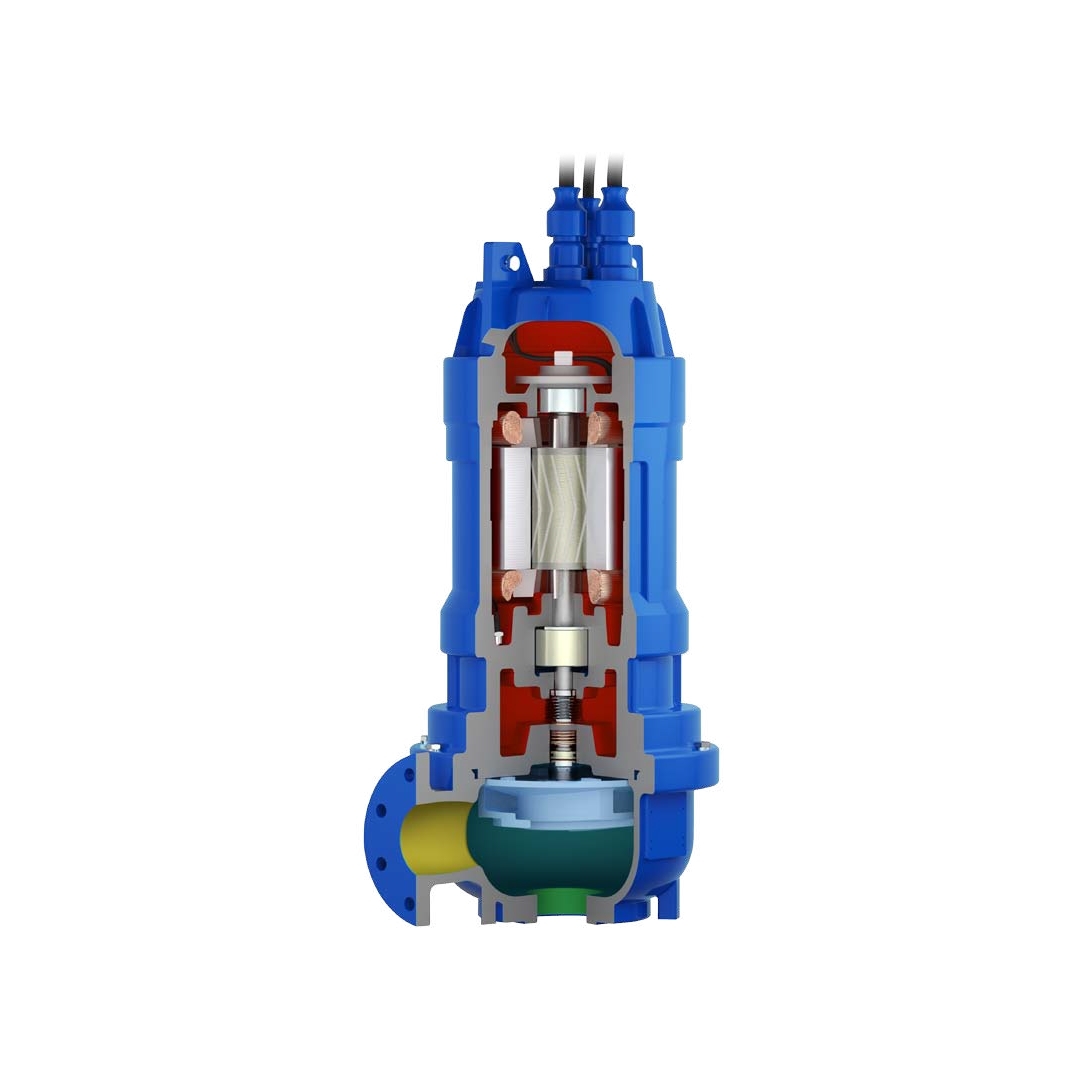

GR Jw submersible cut out
